Rocket-RC 1/28 Mini-Z USA SPEC 2500Kv Sensored Brushless Motors 1525

Rocket-RC 1/28 Mini-Z USA SPEC 2500Kv Sensored Brushless Motors 1525 Series (Black)

Excellent SPEC Class Racing Motor for these Chassis: Kyosho Mini-Z, Atomic, Team Associated, Xbility, Reflex Racing, and many more bands.

• Aluminum alloy front end integrated casing design, high-speed operation, stable and reliable
• 2-Pole linear high-speed, high temperature stable Rotor
• NSK Japanese bearings for smooth high speed runs.
• 8 Motor Mounting holes for M2.0 Screws
• Unique sensored and sensorless dual compatible startup mode
• Industry standard sensor port (5pin - 0.8 Terminal) is connected with sensor cable

• Series: 1525 (Designed for 1/28 & 1/24 Cars)
• Color: Black
• Kv: 2500
• Watt: 80
• Max RPM: 60,000
• Maximum voltage: 2 Cell LiPo | 8.0v-8.4v
• Rotor poles: 2
• Diameter: 15mm
• Length: 25mm
• Mounting Screws: 2mm
• Shaft: 2.0mm
• Shaft length: 10mm
• Connector: Solder Tabs
• Weight: 17g est.

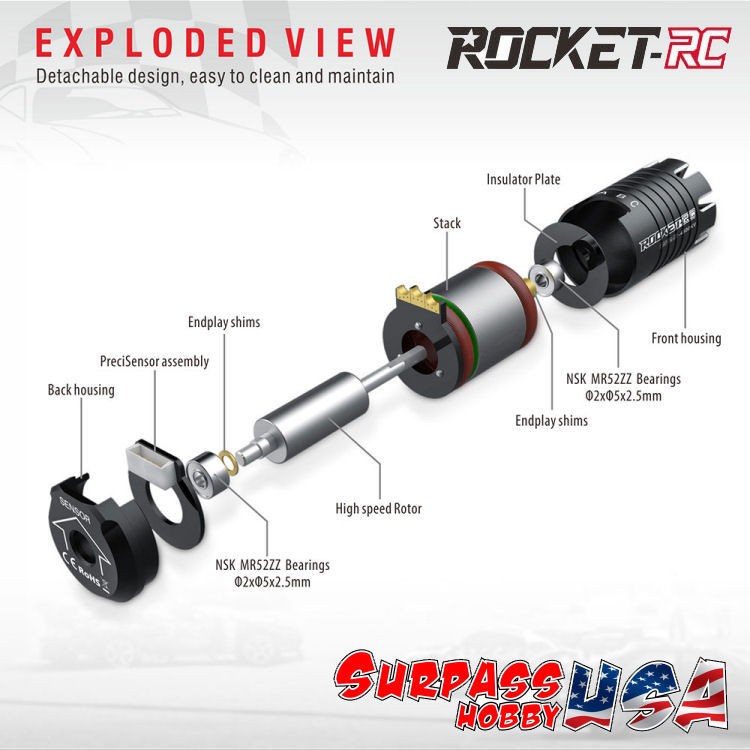

* Images represent the design and features of the Rocket-RC 1525 Series.
